PRD: ADT Grade Manager

Sources used for this draft (Google Drive, ADT folder):

• ADT Grade Submission 2-2025 (Responses): the latest form. The checklist in §6.4 is based on its questions. The sheet also holds the Program Check / School Check / Comments columns, which give the error evidence in §2.
• ADT Grade Submission 2-2024 (Responses) and 2-2024 - School Check: the previous form version, which had extra upload fields.
• ADT - Grading Guideline: the "Practices for Grade Submission" document and its submission checklist.
• ADT School - Grade Report Submission Process.pptx: the current process flow.

1. Summary

At the end of each semester, ADT lecturers do the following:

1. Prepare the REG grade report and supporting documents.
2. Fill in the ADT Grade Submission Google Form, which uploads the files and asks self-declared Yes/No checklist questions.
3. Hand in printed documents.

The program and then the school committee check each course by hand in the response sheet before the grades go to the Registrar's Office.

The form checks nothing. Reviewers read every grade report and score summary by eye, and write the problems they find into a free-text "Comments" column. In semester 2/2025, 17 of about 90 submissions had to be corrected after review (§2).

ADT Grade Manager replaces the form and the review sheet with a web app where a lecturer:

1. Uploads the REG grade report and score summary (Grade Entry) for a course section.
2. Gets an automatic check for likely errors, including the mistakes reviewers actually find: wrong use of I/M/F/U, totals over 100, REG criteria that don't match TQF3, and borderline rounding.
3. Proves that 100% of the accumulated marks were announced to students on REG before grades are submitted, by uploading a screenshot of the REG score-announcement page. This is the only evidence REG can provide (§6.3).
4. Completes the same checklist as the old Google Form (§6.4), with as many items as possible checked automatically.
5. Submits the course for two rounds of review: Round 1 by a buddy (a peer lecturer) and Round 2 by the program. In each round the reviewer verifies every checklist item against the evidence and marks it Verified or Issue. This replaces the Program Check / School Check / Comments columns of the sheet.

2. Problem statement

2.1 Current process (from the Grade Report Submission Process slides)

Prepare grade report & documents → Fill in Google Form checklist → Submit printed report & documents
    → Program check (with summary sheet) → School committee check (with summary sheet) → Submit to Registrar Office

2.2 Evidence from semester 2/2025

The reviewer comments in the 2/2025 response sheet show which errors the form doesn't catch:

The response data also has many data-quality problems that a structured system would prevent:

• The TQF3 link points to a different course code or a different academic year.
• The template placeholder …/[academic year]/[semester]/[course code] was submitted unchanged.
• A Drive link was given instead of the TQF3 link.
• A course code was typed into the phone-number field.
• Several courses, or a section suffix (e.g. 1306412_Sec_01), were typed into one course-code field.
• The same course was submitted 2–3 times.
• A course had no submission and had to be added to the sheet by hand.

2.3 Pain points

3. Goals and non-goals

Goals

• G1. Catch the error categories in §2.2 automatically before submission. Target: at least 80% fewer "fix required" comments from reviewers, compared with 2/2025.
• G2. Guarantee that every approved section has verified evidence that 100% of accumulated marks were announced on REG, and that the announced scores match the grade report.
• G3. Keep every question of the current Google Form (§6.4). Auto-verify the ones the uploaded data can answer.
• G4. Replace the Program Check / School Check / Comments columns with a tracked two-round review (buddy, then program). Every checklist item is verified in each round, and issues are tracked one by one.
• G5. No scanning. Signed paper documents (the final-exam name list, absence forms and the signed grade report) are handed to the school secretary as they are today, and never scanned or uploaded. The system records receipt by the secretary, so everyone can see which paper documents are in (§6.10). Only files that are already digital are uploaded: REG exports, the score spreadsheet and the REG screenshot.
• G6. A typical section takes 10 minutes or less from the moment the REG files are ready.
• G7. The UI is dead simple for everyone: lecturers, buddies, program reviewers and the office. A first-time user completes their task with no training and no manual (§6.8).
• G8. Full transparency within ADT: every ADT lecturer can view every course, its grades and its submission, including reviews and issues (§6.9).

Non-goals (v1)

• Writing grades back into REG. Lecturers still enter and confirm official grades in REG.
• Replacing REG's Grade Entry or a lecturer's own calculation spreadsheet.
• Handling student grade appeals.
• Schools other than ADT, although the design should allow them later.
• Anything after program approval. The system's job ends when the program approves a section. Everything after that is handled manually, outside the system: any school committee check, passing the paper documents on, and sending grades to the Registrar's Office.

4. Users and roles

Sign-in uses MFU Google Workspace SSO (@mfu.ac.th only). In 2/2025 at least one lecturer submitted from a personal Gmail address, so the system should prevent that.

Roles decide only who can change things. Every ADT lecturer can view everything (§6.9).

5. User journeys

5.1 Lecturer: submit grades (a 5-step wizard)

Sign in with MFU SSO. The course list opens, filtered to My courses. Clearing the filter shows every ADT section (§6.9). Clicking a course starts or resumes the submission wizard. There is one step per screen, with Back / Next buttons and a progress bar, and each step asks for one thing (§6.8):

The wizard saves after every step, so the lecturer can close it and come back. If a section is returned in either round, the wizard reopens at the step that has the issue, and the issues are listed one by one. Every version is kept.

5.2 Round 1: buddy review

1. The buddy opens the course list with the To review as buddy filter (or follows the link in the email), and sees their assigned sections with the review deadlines.
2. The buddy opens a submission. The review screen is the checklist (§6.4): one row per item. Each row shows:
   • the lecturer's answer
   • the automatic check result, where there is one
   • the evidence, opened side by side (grade report, score summary, REG screenshot, TQF3 link)
   • for paper documents, the secretary's receipt status instead of a file
3. For every checklist item, the buddy records one of:
   • Verified: the evidence supports the answer.
   • Issue: a note is required, for example "M given but the course has no final exam: should be I".
   • N/A: only where the item doesn't apply, for example no M grades means no absence form is needed.
4. Items that pass their automatic checks are pre-marked Verified (auto). The buddy can override one to Issue. Items that need judgment can't be pre-marked, and the buddy must decide them: #7c/#10 (REG 100% screenshot), #15, #19 and any acknowledged warnings. The paper-document items (#8, #9, #12) are verified by the secretary's receipt, not by the buddy (§6.10).
5. The buddy can also raise an issue on a student row, for example a borderline 69.99.
6. Pass to program is only possible once every item is marked. If any item has an Issue, the only action is Return to lecturer.

5.3 Round 2: program review

1. The program reviewer opens the course list with the To review as program filter. Sections show the five statuses: Not submitted · With buddy · With program · Returned · Approved.
2. They open a submission that has passed buddy review. They see the same checklist, now with the buddy's verdict and notes for each item, plus:
   • the validation summary and any acknowledged warnings with their reasons
   • the grade distribution, including I/M/W/RESIGNED counts
   • a comparison with previous offerings of the course
3. For every checklist item, the reviewer confirms the buddy's verdict or marks an Issue. "Confirm all verified" is allowed only for items the system checked automatically. The judgment items (#7c/#10, #15, #19) must each be confirmed individually.
4. Approve, or Return to lecturer. Approval is blocked until the secretary has marked every required paper document received. When a returned section is resubmitted, it goes straight back to the program (Round 2). The only exception is when the fix changes items the buddy had already verified: those items go back to the buddy first.

5.4 School office

1. Create the semester, for example 1/2569. Import the ADT course/section/lecturer list and the REG rosters. Set the deadlines for submission, buddy review and program review. Lecturers choose their own buddies (FR-5.6).
2. Monitor completion. Sections with no submission are visible from day one, instead of being found by hand.
3. Send reminders. When a program approves a section, the system's work on it is done. The office exports the approved list and continues the rest of the process manually.

6. Functional requirements

6.1 Uploads

• FR-1.1 Accept the REG exports (.xlsx, .xls, .csv, or a PDF exported from REG), custom spreadsheets, and the REG screenshot, up to 20 MB per file. Scans of paper documents aren't accepted. Paper goes to the secretary (§6.10).
• FR-1.2 Parse the known REG layouts: the Grade report, the Grade Entry with criteria details, and the Set list of scores / Display Calculated Score. A column mapper handles custom spreadsheets and remembers each lecturer's mapping.
• FR-1.3 There are no uploads for signed or paper documents. The upload box explains this in plain words: "Signed exam lists and absence forms go to the secretary. No need to scan."
• FR-1.4 Uploads are versioned. Only the latest version can be submitted, and earlier versions can be viewed and compared.
• FR-1.5 The system stores the grading criteria from REG Grade Entry for each section, along with the TQF3 evaluation plan once it has been entered or imported (§6.2, C-17).

6.2 Error and consistency checks

Severity levels:

• Error: blocks submission.
• Warning: must be fixed or acknowledged with a reason.
• Info: shown only.

Structure and roster

Scores and totals

Grade versus score

Special grades (rules taken from the ADT - Grading Guideline)

REG, TQF3 and data quality

• FR-2.1 The checks finish within 5 seconds for 500 students.
• FR-2.2 Each finding shows the student row, the actual value, the expected value, and a suggested fix. The suggested fix says what to change in REG, because REG is the source of truth.
• FR-2.3 Admins can enable or disable each check, change its severity and set its thresholds for each semester.
• FR-2.4 The validation report is kept with each submission version, so reviewers can see what was flagged and what was acknowledged.

6.3 REG 100% score announcement verification

Rule: before grades are submitted, students must have been able to see their accumulated scores on REG for every evaluation component, adding up to 100% of the course mark. They must also have been given a deadline to review and dispute them (Grading Guideline, steps 2–3).

The current form only asks whether some results were shared ("I have shared some part of evaluation results to the students"). The Grading Guideline also advises lecturers to "consider disclosing less than 100%". Decision: 100% is required. Every component must be announced before submission, and the Grading Guideline will be updated to match.

Constraint: REG has no export or API that shows which score components are announced to students. The only evidence is screenshots of two REG pages, captured by the lecturer with the Windows Snipping Tool and pasted in. No AI or OCR is used in v1. Reviewers read the screenshots by eye.

6.3.1 The two required screenshots

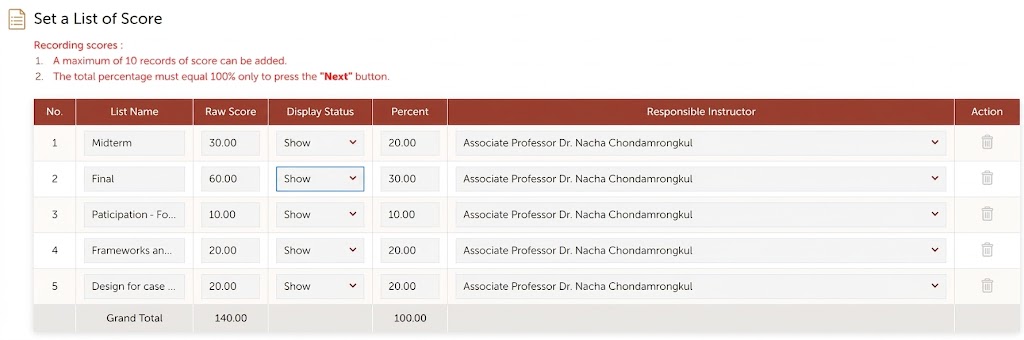

(A) "Set a List of Score": proves that 100% was announced.

What must be visible, and what the reviewers check:

• every row of the table, with the List Name, Raw Score, Display Status, Percent and Responsible Instructor columns
• Display Status = "Show" on every row. A single "Hide" means the 100% rule is not met.
• the Grand Total row, with Percent = 100.00. REG allows at most 10 score items, and the percentages must total 100 before REG lets the lecturer continue.
• the list names match the evaluation components in TQF3 and in the uploaded score summary, including group and individual project marks, which were missing in 2/2025

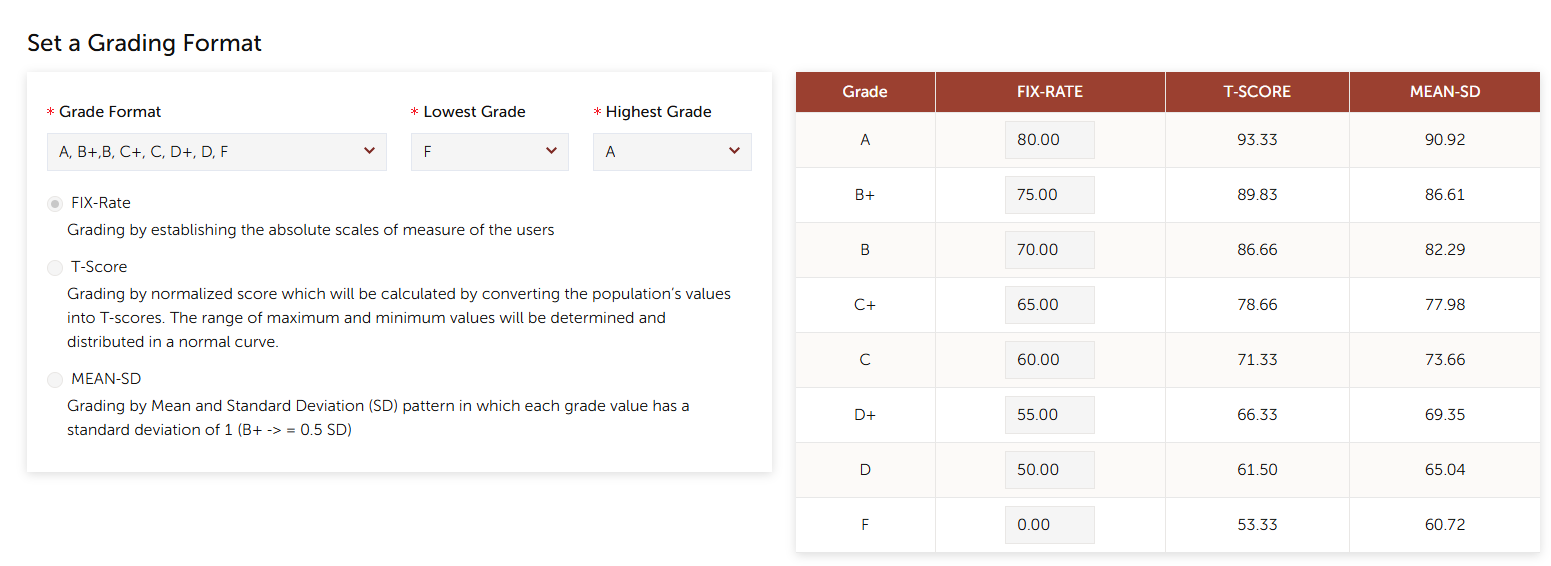

(B) "Set a Grading Format": shows the grade cutoffs REG uses.

What must be visible, and what the reviewers check:

• the Grade Format, Lowest Grade and Highest Grade, and which method is selected: FIX-Rate, T-Score or MEAN-SD

• the whole cutoff table (A … F)

• for FIX-Rate, the cutoffs match the grading policy in TQF3 (checklist #15 and #19). For T-Score or MEAN-SD, the method matches what TQF3 states.

• the cutoffs match the ones the grade report was calculated with. The system shows the cutoffs it found in the uploaded Grade Entry next to the screenshot (C-11, C-21).

• FR-3.1 Both screenshots are required. Submit is blocked until box (A) and box (B) each contain an image. Each box accepts paste from the clipboard (Ctrl+V), drag-and-drop, or file select. PNG and JPG are accepted. More than one image per box is allowed, for example if the list of scores needs scrolling.

• FR-3.2 Built-in snipping guide next to each box, visible without clicking:

  1. Open REG → Grade Entry → your course and section → the Set a List of Score page (or Set a Grading Format).
  2. Press Windows + Shift + S (Snipping Tool), then drag a rectangle around the whole table, including the header row and the Grand Total row. On a Mac, press Cmd + Ctrl + Shift + 4.
  3. Come back and press Ctrl + V in the box. The snip is copied automatically, so there's no need to save a file.

  Under the steps, the sample image (above) is shown with the must-see parts highlighted: Display Status, Percent, Grand Total, and the cutoff table. Three "Don't" thumbnails follow: a table cut off at the right so the Display Status or Percent columns are missing, the Grand Total row missing, and a row showing "Hide".

• FR-3.3 No automatic reading in v1. The review screen shows each screenshot large, next to what the system knows: the components and weights from the uploaded score summary for (A), and the cutoffs from the Grade Entry for (B). A tick list for the reviewer sits beside them:

  • (A): every row is "Show" · Grand Total Percent = 100.00 · the names match the score summary and TQF3
  • (B): the method is right · the cutoffs match TQF3 · the cutoffs match the grade report

  No AI model and no API key are needed for v1. Automatic reading is a possible later phase (§11), and would need DPO approval.

• FR-3.4 Lecturer declaration (Confirm):

  • "All evaluation components, totalling 100%, are announced to students on REG, as shown in the attached screenshot."
  • The announcement date and the review/dispute deadline given to students. Students must have had at least 3 days between the announcement and the deadline, and the deadline must be before submission. The system warns otherwise.
  • "If there are any missing marks, I have already communicated with the students."

• FR-3.5 Two-round confirmation (required): in both rounds, the reviewer sees both screenshots next to the Grade Entry components, weights and cutoffs, with the tick list from FR-3.3. The buddy must mark "REG 100% announcement verified" (or Issue), and the program reviewer must confirm it. Neither can pre-mark it automatically.

• FR-3.6 The dashboard shows a badge for each section: REG 100%: Missing / Uploaded / Verified by buddy / Confirmed by program / Issue raised.

• FR-3.7 Future: if REG ever provides an export or API for announcement status, it replaces the screenshot (Q2).

6.4 Submission checklist (migrated from the Google Form)

Every question of the 2/2025 ADT Grade Submission form is kept, in its original order and wording, so records stay comparable across semesters. Each item gets one of these types:

• Auto: verified by the system from the uploaded data. Ticked and locked, with a link to the evidence.
• Confirm: the lecturer answers Yes/No. A reason is needed where the form had an "Other" option.
• Prefill: data the system fills in, which the lecturer can correct.
• Upload: a required or optional file.

Review verdicts for each item. Every row above (#1–#19, #7a–#7c) has two review columns: Buddy verdict and Program verdict. Each is Verified / Issue (with a note) / N/A. The table below sets how each item is reviewed:

Result: 8 of the 16 self-declared Yes/No items (#6–#19) become fully or partly automatic. Three (#8, #9, #12) are confirmed by the secretary's receipt of the paper document. The REG 100% item (#10) is backed by a required screenshot and a reviewer's confirmation, and the only purely self-declared item left is #11.

Baseline (decided): the 2/2025 form as-is, plus the REG screenshot upload (#7c). The list was built from the column headers of the 2/2025 response sheet. The extra 2/2024 items (#7a, #7b) are kept as optional uploads.

• FR-4.1 Admins can edit the checklist for each semester (add, reorder, change type) without a code change. The version used is stored with each submission.
• FR-4.2 A one-time import of past response sheets (2/2024, 1/2024 and 2/2025), including the Program Check / School Check / Comments columns, so reports cover earlier semesters.

6.5 Review and approval workflow

• FR-5.1 Status flow:

  Draft → Submitted
        → Round 1: Buddy review ──(Issue)──→ Returned → Resubmitted → Round 1
        → Round 2: Program review ──(Issue)──→ Returned → Resubmitted → Round 2
                                     (items the buddy had verified and the fix changed go back to the buddy first)
        → Program approved (locked). The system's scope ends here. Everything after is manual.


• FR-5.2 Verification against the checklist: each round stores a verdict for every checklist item (Verified / Issue / N/A), along with the reviewer, a timestamp, and a note that is required for Issue and N/A. A round can't be completed while any item has no verdict.
• FR-5.3 Issues: reviewers raise issues on a checklist item, an automatic check, a student row, or the whole section. Each issue stays open until the lecturer fixes it and the reviewer who raised it resolves it. This replaces the "Comments" and "แก้ไขแล้ว" ("fixed") cells.
• FR-5.4 Round rules:
  • The buddy can't be an instructor of the section.
  • The program reviewer can't be the section's buddy or an instructor of it.
  • A lecturer can't review their own section in either round.
  • On resubmission, earlier verdicts are kept. Items affected by the changed files are reset, and must be verified again.
• FR-5.5 Email notifications (MFU mail):
  • on submit (to the buddy)
  • on passing to the program (to the program reviewer)
  • on return and on new issues (to the lecturer)
  • on approval
  • deadline reminders for each stage (T-3 days, T-1 day, overdue)
• FR-5.6 The lecturer chooses their buddy when submitting:
  • The Submit step has a single "Choose your buddy" box, which searches any ADT lecturer. It excludes the lecturer themselves and anyone teaching the section.
  • Beside each name, the box shows how many sections that person already has waiting, so lecturers can spread the load.
  • The buddy is notified, and can accept or decline. If they decline, the section returns to the lecturer, who chooses someone else.
  • The office can see every pairing and can step in if needed, for example when a buddy is unavailable. No up-front assignment is needed.
• FR-5.7 A review summary is generated for each section: the checklist, both rounds' verdicts, and the issue history. It replaces the summary sheet reviewers receive today, and can be exported as PDF for the manual steps after approval.
• FR-5.8 Only an admin can reopen a locked section, and must record a reason, for example a grade change after an appeal.

6.6 Dashboards and exports

• FR-6.1 One course list for everyone: every ADT section in the semester, with its status and REG 100% badge, searchable by course code, name or lecturer. Quick filters: My courses, To review as buddy, To review as program, Paper to receive (secretary), All. There are no separate dashboards to learn. The filters do the job.
• FR-6.2 A summary strip at the top of the list, visible to everyone:
  • completion by program and by stage (not started / buddy review / program review / approved), including sections not started
  • overdue buddy reviews and buddy workload
  • the REG 100% badge
  • the count of open issues
  • I/M/W/RESIGNED counts
  • the grade distribution for each course, compared with previous offerings
• FR-6.3 Exports:
  • a completion report (.xlsx)
  • an approved-sections list (.xlsx) for the manual process after approval
  • a checklist export in the same column layout as the old response sheet, so it stays continuous with past records

6.7 Audit and records

• FR-7.1 Every action (upload, acknowledgement, checklist answer, submit, issue, approve, reopen) is logged with the user and a timestamp. Viewing and downloading another lecturer's files are logged too (§6.9).
• FR-7.2 Records are kept for at least 5 years, or longer if MFU's records policy requires.

6.8 Dead-simple UI

The system must be usable by every lecturer, including those who rarely use web tools, with no training. These are requirements, not suggestions.

• FR-8.1 Three screens in total:
  1. Course list: everyone, every section (FR-6.1).
  2. Course page: one page per section. It opens as the submission wizard for the section's lecturer until submitted, and otherwise shows everything about the section (files, checks, checklist, reviews, issues, history).
  3. Admin: office only. There are no other screens, pop-ups or separate dashboards. The wizard is part of the course page.
• FR-8.2 Submission is a 5-step wizard (§5.1): ① Check course → ② Upload REG files → ③ Paste screenshots → ④ Fix problems → ⑤ Confirm & submit. Each step is one screen asking for one thing, with a progress bar, Back / Next, and one primary button. Step ④ is skipped when there is nothing to fix. When the wizard is finished, the course page shows the section's status, its review rounds and its history.
• FR-8.3 Uploading is effortless. Files are dragged into one box, and the system works out which is the grade report and which is the score summary. Screenshots are pasted with Ctrl+V straight from the Snipping Tool, with the guide and sample image beside each box (FR-3.2). Nothing is typed that the system already knows. Paper documents never appear as uploads. They appear as a short "Give to secretary" list.
• FR-8.4 Problems are written in plain language, with the fix, for example "3 students have F but no final exam score. They were probably absent: change to M in REG." Error codes (C-xx) are hidden from lecturers and shown only in a details view for reviewers and admins.
• FR-8.5 The checklist and the review use the same table. One row per item, with at most three buttons per row: ✓ Verified, ✗ Issue, N/A. The evidence opens in a side panel without leaving the page. A buddy or program reviewer sees exactly what the lecturer saw, with their own column added.
• FR-8.6 Five statuses everywhere, shown as coloured labels with text: Not submitted · With buddy · With program · Returned · Approved. The same words are used in the list, the page and the emails.
• FR-8.7 Every email has one link that opens the exact course page, with the action waiting. There is no need to search.
• FR-8.8 Language: a one-click Thai / English switch. The same plain wording is used in both.
• FR-8.9 Forgiving: drafts save automatically. Re-uploading replaces the file and keeps the history. Nothing is lost by closing the browser.
• FR-8.10 Usability acceptance test before the pilot: 5 lecturers and 2 reviewers who have never seen the system complete submit, buddy review and program review without help. The median is 10 minutes or less for a submission and 5 minutes or less for a review. Every step where someone got stuck is fixed before launch.

6.8.1 Designed so people read, not click through

A two-round review only helps if reviewers actually look. The UI makes the careful path the only path, and it makes the important things impossible to miss.

• FR-8.11 Evidence before verdict. On every judgment item, ✓ Verified (and N/A) stay locked until the reviewer has opened that item's evidence. A pulsing eye button marks unopened evidence, and it turns green once opened. ✗ Issue is always available.

• FR-8.12 Read-back check on the REG screenshot. To unlock Verified on the REG 100% item, the reviewer must:

  • type the Grand Total Percent they see in screenshot A. If they type anything other than 100, the system tells them to mark it as an Issue.
  • tick four specific checks: every row says Show · the names and % match the score summary · the method matches TQF3 · the cutoffs match TQF3 and the grade report.

  Screenshots open full size with one click, so the numbers can actually be read.

• FR-8.13 The lecturer checks their own screenshot, too. After pasting each screenshot, the lecturer must tick what they can actually see, for example "every row says Show" and "Grand Total = 100.00", before Next unlocks. The snipping guide folds away once both are ticked.

• FR-8.14 A random spot-check of the pre-checked items. The system pre-checks the items it can verify automatically, and picks one at random for the reviewer to open and verify themselves. The program reviewer can only bulk-confirm the remaining pre-checked items after doing their own spot-check. The random choice changes between rounds.

• FR-8.15 Unusual things first, and highlighted:

  • a "Heads up" strip at the top of the review lists anything out of the ordinary, with an icon: a warning the lecturer overrode, M grades in a course with no final exam, a lecturer answer of "No", an M count that means absence forms are due, and paper not yet received
  • judgment items with something unusual are sorted to the top with an amber Look closely tag (e.g. "Lecturer overrode a warning", "Buddy raised an issue")

• FR-8.16 No defaults on decisions. Yes/No questions, the borderline-grade choice and every verdict start empty. Nothing is pre-selected for the user to accept by accident, and no decision is made on the user's behalf.

• FR-8.17 Press and hold to finish. Submit, Pass, Approve and Return open a summary card of what is about to happen (what was checked, what was overridden, what paper is outstanding). The action happens only after pressing and holding the button for about 1 second. This also works with the keyboard (hold Enter or Space), and Esc cancels.

• FR-8.18 Progress you can see: a bar with "n of m checks done", and a plain reason next to every disabled button, e.g. "Type the Grand Total % you see in screenshot A" or "Waiting for the secretary to receive the paper".

• FR-8.19 Icons and artwork carry meaning, not decoration. One consistent icon set: eye = look at evidence, lock = not yet unlocked, dice = spot-check, document = paper for the secretary, warning triangle = look closely. Small illustrations mark the key moments: snipping the REG pages, the 100% gauge, bringing paper to the secretary, returned for fixes, and approval. Colour is never the only signal: every state also has an icon and words.

6.9 Visibility: everything is open to all ADT lecturers

• FR-9.1 Every signed-in ADT lecturer can view every section in every semester, whether or not they teach it:

  • course details and lecturers
  • uploaded files (grade report, score summary, REG screenshot) and the receipt status of the paper documents
  • student grades and scores
  • validation results and acknowledged warnings
  • the checklist and both review rounds' verdicts
  • issues and their history
  • the grade distribution

• FR-9.2 Viewing is open, and changing is restricted:

  Action	Who
  View anything	All ADT lecturers, reviewers, office
  Upload, fix, submit, acknowledge warnings	The section's lecturers
  Round 1 verdicts, raise or resolve buddy issues	The assigned buddy
  Round 2 verdicts, approve or return	The program reviewer
  Comment on any section (without a verdict)	Any ADT lecturer
  Mark paper documents received or missing	School secretary
  Choose the buddy	The section's lecturer (at submission)
  Setup, reassign a buddy if needed, reopen, exports	Office / admin

• FR-9.3 Access is limited to ADT staff. Viewing requires MFU SSO and membership of the ADT staff list maintained by the office. Students and staff outside ADT have no access.

• FR-9.4 Personal contact data isn't part of the "open" set. Lecturer phone numbers are visible only to the office and to the section's reviewers.

6.10 Paper documents: handed to the secretary, never scanned

Signed documents stay on paper. The system tracks whether they have been received, not their content.

• FR-10.1 Required paper documents are listed automatically for each section:

  Document	Required when
  Signed final-exam name list	The section has a final exam (flag set by the office, FR-10.7)
  Student Exam Absence form	Once for each student with an M grade (count taken from the grade report)
  Signed grade report	Always

• FR-10.2 The lecturer's course page shows these as a "Give to secretary" checklist with a status for each: Awaiting secretary · Received · Missing. Nothing needs uploading.

• FR-10.3 Secretary view: no extra screen is needed. The secretary uses the course list with the Paper to receive filter, which shows each section and the paper documents it needs, with the tick boxes right in the list. The secretary ticks Received when a document is handed in. For absence forms, they enter the number received, which is checked against the M count. They can mark Missing, with a note, which notifies the lecturer. Each tick records the secretary's name and the time.

• FR-10.4 The secretary can search by course code or lecturer, so they can tick everything a lecturer hands in at the counter at once.

• FR-10.5 A buddy can review before the paper arrives. Program approval is blocked until every required paper document is Received.

• FR-10.6 No scan or photo of a paper document is stored anywhere in the system. The physical file stays with the secretary.

• FR-10.7 The "has a final exam" flag is set by the office for each section, when the course list is imported each semester. It is used by C-14, C-15 and FR-10.1. Lecturers can see it, and can ask the office to correct it.

7. Non-functional requirements

8. Data model (high level)

• Semester: year and term, deadlines, active checks, checklist version.
• Program → Course → Section: lecturers, roster, whether the course has a final exam, REG criteria, TQF3 plan.
• Student: ID and name. Enrollment links a student to a section.
• Submission → Version: the files, parsed rows, validation results, REG announcement evidence, checklist answers and acknowledgements.
• BuddyAssignment: section, buddy, chosen by (the lecturer), when, and accepted or declined.
• ReviewRound: round (1 = buddy, 2 = program), reviewer, version reviewed, started and completed times, outcome (passed/approved or returned).
• ItemVerdict: review round, checklist item, verdict (Verified / Issue / N/A), whether it was set automatically, and a note.
• PaperDocument: section, type (exam list / absence form / signed grade report), number required, number received, status, received by, and when.
• Issue: raised by, round, target (checklist item, check, row or section), status.
• AuditLog.

9. Integrations

10. Success metrics

• 100% of ADT sections submit through the system by the second semester after launch.
• 100% of approved sections have a REG announcement screenshot verified by the buddy and confirmed by the program.
• 100% of approved sections have a verdict on every checklist item in both rounds.
• At least 70% of the issues that reach program review have already been caught by the buddy, so Round 2 finds few new problems.
• The median buddy review takes 2 working days or less.
• "Fix required" reviewer issues fall by at least 80% compared with the 2/2025 baseline (17 of about 90).
• Zero I/M/F/U misuse issues found after submission, because they are caught by C-14 to C-17.
• Zero duplicate or missing section submissions.
• The median time from first upload to submit is 10 minutes or less.
• Lecturer satisfaction is at least 4/5, with a System Usability Scale (SUS) score of 80 or more.
• 90% or more of lecturers submit their first section without asking the office for help.

11. Rollout plan

12. Open questions and risks

13. Future ideas

• Grade-change requests after approval
• A student-facing status view
• Reports for AUN-QA and TQF5, built from the stored distributions
• Expansion to other MFU schools
